POWER STOP
AR85135EVC

第三方数据POWER STOP : AR85135EVC

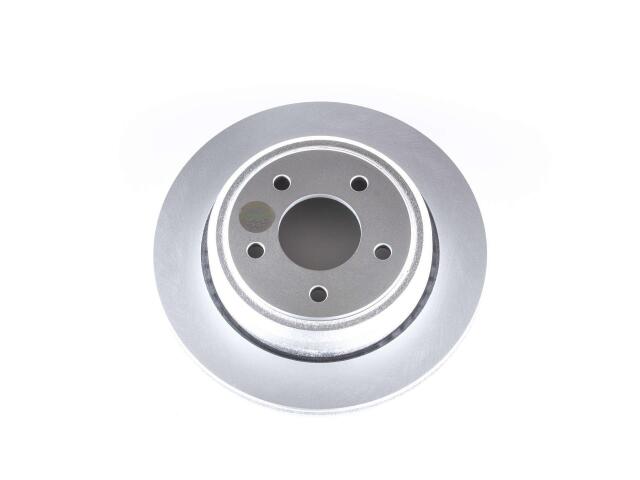

Rotor
POWER STOP : AR85135EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.71
Discard Thickness (MM): 18.00
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115.00
Nominal Thickness (IN): 0.75
Nominal Thickness (MM): 19.00
Outside Diameter (IN): 11.62
Outside Diameter (MM): 295.20
Overall Height (IN): 2.44
Overall Height (MM): 62.10
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)

MAZDA (2)
