第三方数据POWER STOP : AR85130EVC

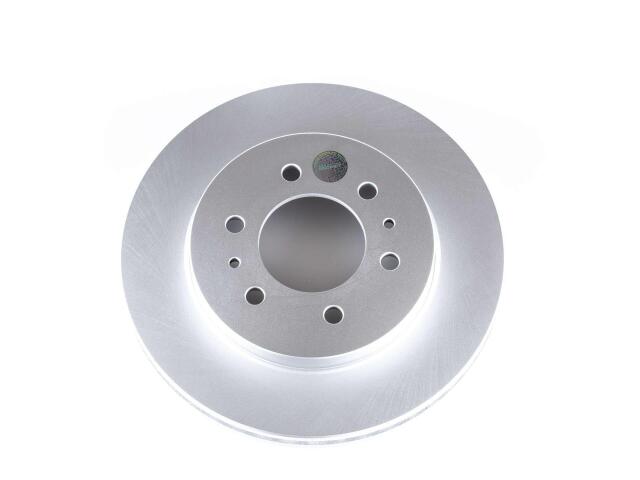

Rotor
POWER STOP : AR85130EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.12
Discard Thickness (MM): 28.50
Mounting Bolt Hole Circle Diameter (IN): 5.31
Mounting Bolt Hole Circle Diameter (MM): 135.00
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30.00
Outside Diameter (IN): 12.99
Outside Diameter (MM): 330.00
Overall Height (IN): 2.07
Overall Height (MM): 52.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

FORD (1)
