第三方数据POWER STOP : AR85104EVC

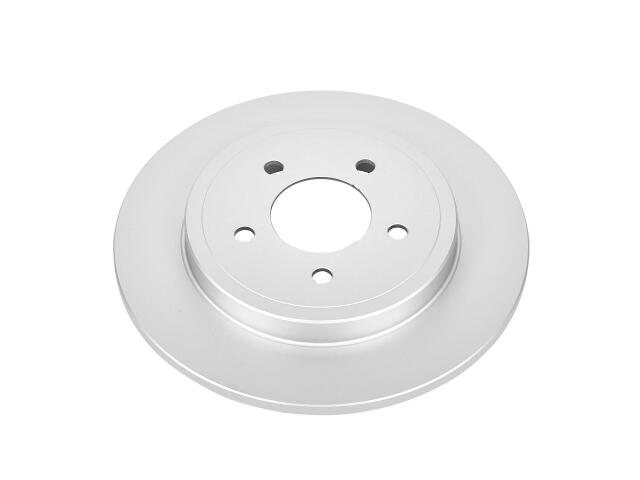

Rotor
POWER STOP : AR85104EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.43
Discard Thickness (MM): 10.90
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 11.90
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302.00
Overall Height (IN): 2.13
Overall Height (MM): 54.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)

MAZDA (1)

MERCURY (1)
