POWER STOP
AR85100EVC

第三方数据POWER STOP : AR85100EVC

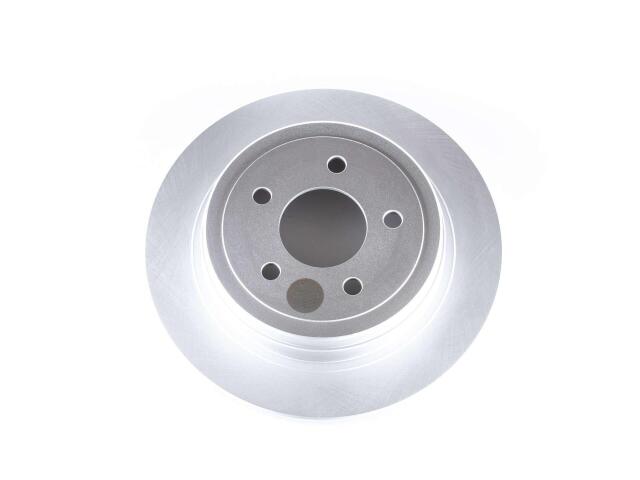

Rotor
POWER STOP : AR85100EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.50
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12.00
Outside Diameter (IN): 11.83
Outside Diameter (MM): 300.40
Overall Height (IN): 2.30
Overall Height (MM): 58.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)
