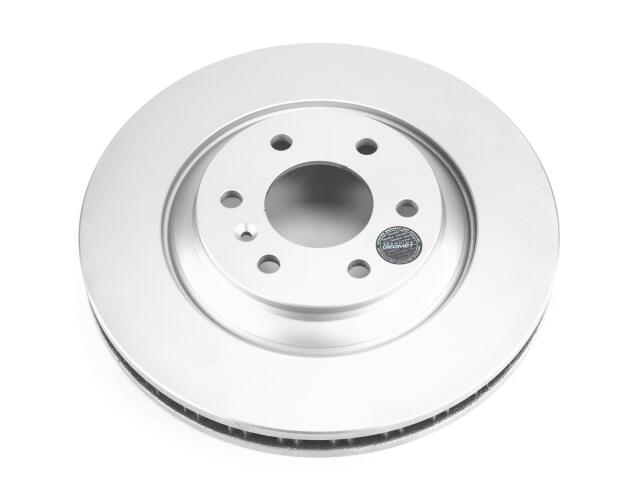

Rotor
POWER STOP : AR84003EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.21
Discard Thickness (MM): 30.70
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115.00
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32.00
Outside Diameter (IN): 12.60
Outside Diameter (MM): 320.00
Overall Height (IN): 2.05
Overall Height (MM): 52.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

VPG (1)

MOBILITY VENTURES (1)
