第三方数据POWER STOP : AR84002EVC

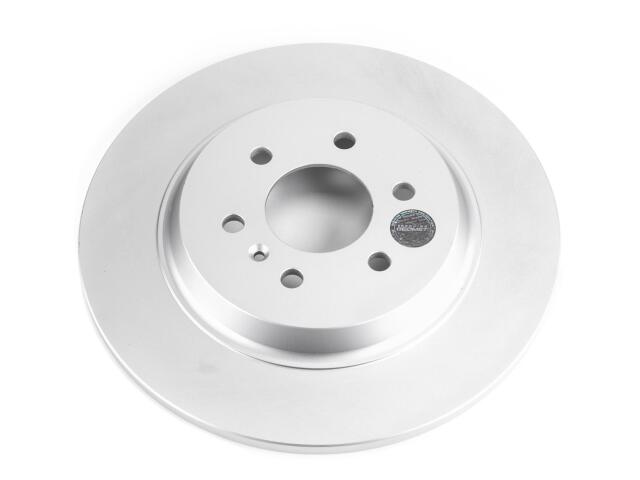

Rotor
POWER STOP : AR84002EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.50
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115.00
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12.00
Outside Diameter (IN): 12.76
Outside Diameter (MM): 324.00
Overall Height (IN): 1.44
Overall Height (MM): 36.50
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

VPG (1)

MOBILITY VENTURES (1)
