POWER STOP
AR8353EVC

第三方数据POWER STOP : AR8353EVC

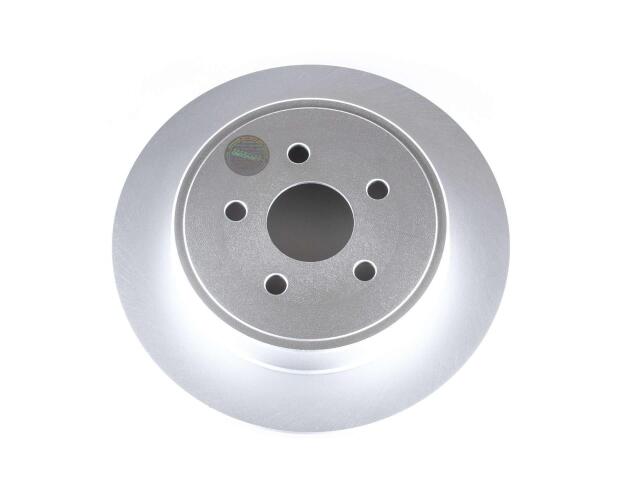

Rotor
POWER STOP : AR8353EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.40
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100.00
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 11.90
Outside Diameter (IN): 10.62
Outside Diameter (MM): 269.70
Overall Height (IN): 2.10
Overall Height (MM): 53.30
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

CHRYSLER (1)

DODGE (1)
