POWER STOP
AR83092EVC

第三方数据POWER STOP : AR83092EVC

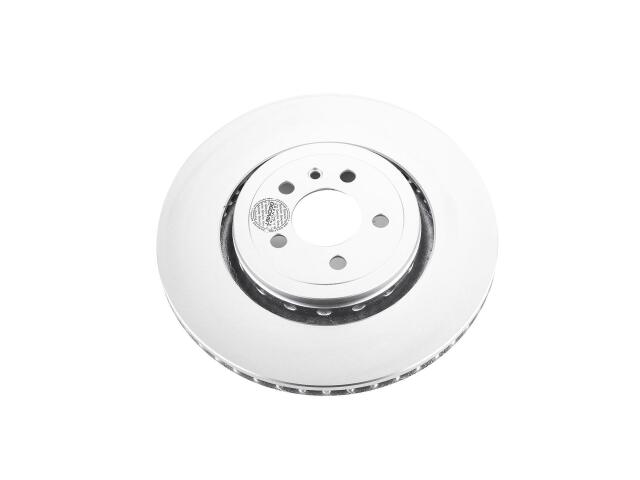

Rotor
POWER STOP : AR83092EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.18
Discard Thickness (MM): 30.00
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115.00
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32.10
Outside Diameter (IN): 14.57
Outside Diameter (MM): 370.00
Overall Height (IN): 2.23
Overall Height (MM): 56.70
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

DODGE (1)

CHARGER (2)
