POWER STOP
AR83074EVC

第三方数据POWER STOP : AR83074EVC

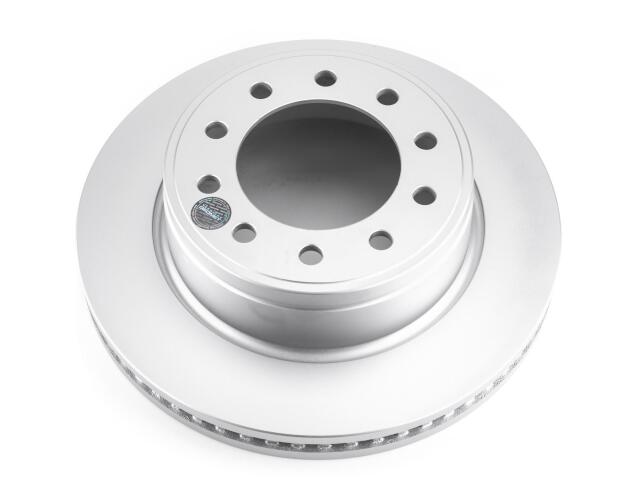

Rotor
POWER STOP : AR83074EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.47
Discard Thickness (MM): 37.40
Mounting Bolt Hole Circle Diameter (IN): 6.69
Mounting Bolt Hole Circle Diameter (MM): 170.00
Nominal Thickness (IN): 1.54
Nominal Thickness (MM): 39.00
Outside Diameter (IN): 15.37
Outside Diameter (MM): 390.30
Overall Height (IN): 4.37
Overall Height (MM): 111.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 10
Surface Type: Smooth

适用车型

DODGE (2)

RAM (2)

4500 (2)

6.4L V8 (11)

6.7L L6 DIESEL Turbocharged (14)

5500 (2)

6.4L V8 (11)

6.7L L6 DIESEL Turbocharged (14)
