POWER STOP
AR8287XPR

第三方数据POWER STOP : AR8287XPR

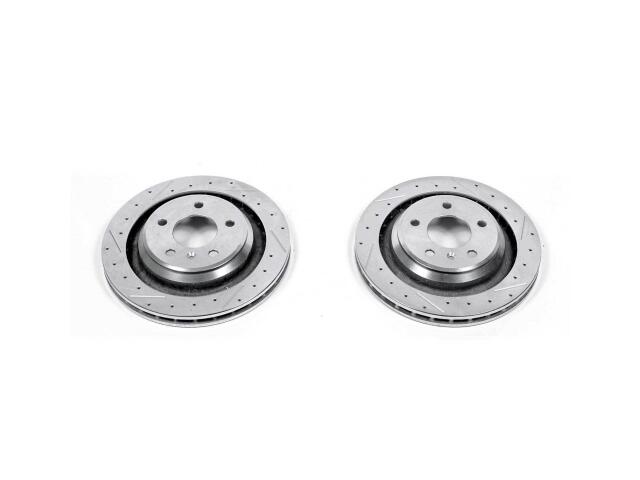

Rotor
POWER STOP : AR8287XPR

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.95
Discard Thickness (MM): 24.10
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115.10
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 25.90
Outside Diameter (IN): 12.01
Outside Diameter (MM): 305.10
Overall Height (IN): 1.94
Overall Height (MM): 49.20
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Drilled & Slotted

适用车型

PONTIAC (1)
