POWER STOP
AR8286EVC

第三方数据POWER STOP : AR8286EVC

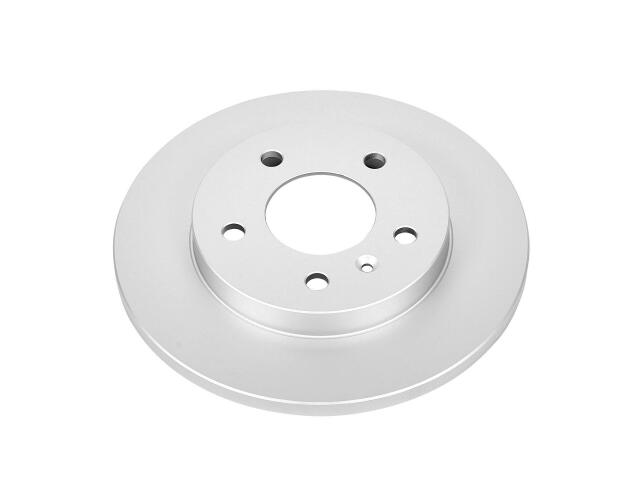

Rotor
POWER STOP : AR8286EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.49
Discard Thickness (MM): 12.50
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115.00
Nominal Thickness (IN): 0.55
Nominal Thickness (MM): 14.00
Outside Diameter (IN): 10.63
Outside Diameter (MM): 270.00
Overall Height (IN): 1.45
Overall Height (MM): 36.80
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (2)

CHEVROLET (2)

PONTIAC (1)
