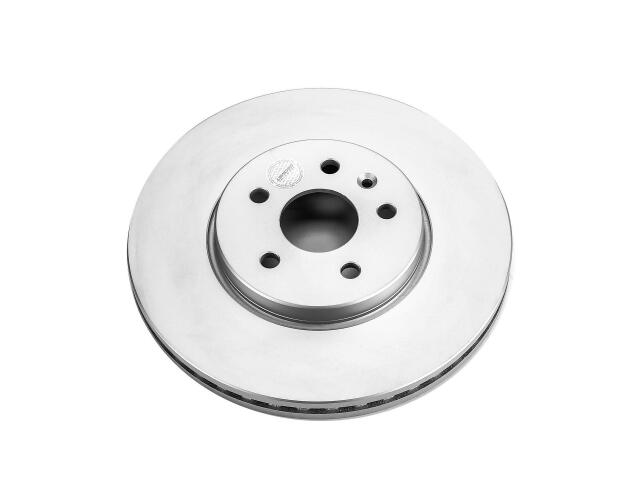

Rotor
POWER STOP : AR82177EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23.00
Mounting Bolt Hole Circle Diameter (IN): 4.15
Mounting Bolt Hole Circle Diameter (MM): 105.30
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26.00
Outside Diameter (IN): 11.81
Outside Diameter (MM): 300.00
Overall Height (IN): 1.80
Overall Height (MM): 45.80
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CHEVROLET (1)
