POWER STOP
AR8179EVC

第三方数据POWER STOP : AR8179EVC

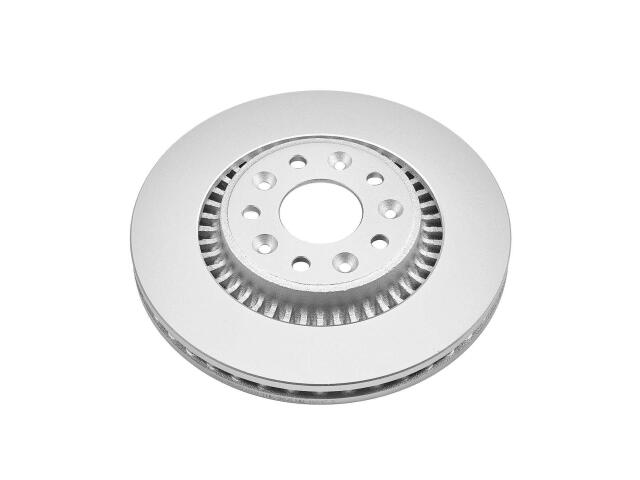

Rotor
POWER STOP : AR8179EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 1.04
Discard Thickness (MM): 26.40
Mounting Bolt Hole Circle Diameter (IN): 4.50
Mounting Bolt Hole Circle Diameter (MM): 114.30
Nominal Thickness (IN): 1.10
Nominal Thickness (MM): 27.90
Outside Diameter (IN): 12.40
Outside Diameter (MM): 315.00
Overall Height (IN): 1.85
Overall Height (MM): 47.00
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (4)

MERCURY (2)
