POWER STOP
AR8139EVC

第三方数据POWER STOP : AR8139EVC

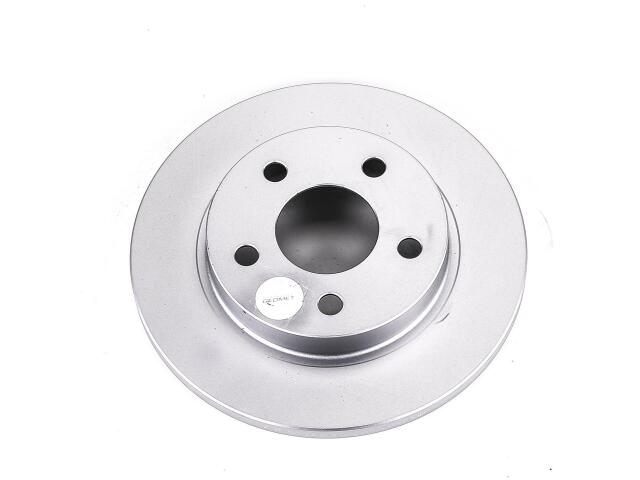

Rotor
POWER STOP : AR8139EVC

Abs Tone Ring Included: No
Construction: Full Cast
Discard Thickness (IN): 0.50
Discard Thickness (MM): 12.70
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108.00
Nominal Thickness (IN): 0.56
Nominal Thickness (MM): 14.10
Outside Diameter (IN): 10.08
Outside Diameter (MM): 256.00
Overall Height (IN): 1.57
Overall Height (MM): 39.80
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

FORD (1)

MERCURY (1)
