PAGID
355113932

第三方数据PAGID : 355113932

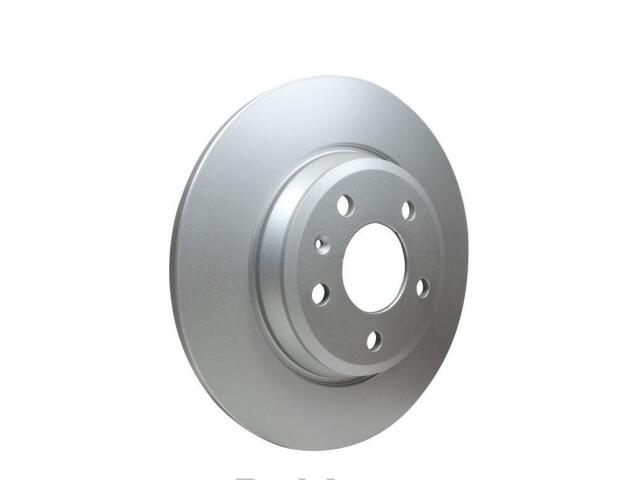

Rotor
PAGID : 355113932

Construction: Full Cast
Disc Finish: Coated
Discard Thickness (MM): 10.00
Hat Finish: Coated
Material: Gray Cast Iron
Mounting Bolt Hole Quantity: 6
Nominal Thickness (MM): 12.00
Outside Diameter (MM): 300.00
Overall Height (MM): 36.20
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid

适用车型

AUDI (5)

A4 (2)

2.0L L4 Turbocharged (8)

2009	Integral One-Piece Design; High Carbon; Fully Coated Rear; Avant or Base Model 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2010	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2011	Integral One-Piece Design; High Carbon; Fully Coated Rear; Avant or Base Model 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2012	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2013	Integral One-Piece Design; High Carbon; Fully Coated Rear; Base Model 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2014	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2015	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2016	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

3.2L V6 (1)

A5 (2)

2.0L L4 Turbocharged (8)

2010	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2011	Integral One-Piece Design; High Carbon; Fully Coated Rear; Base Model or Cabriolet 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2012	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2013	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2014	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2015	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2016	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

2017	Integral One-Piece Design; High Carbon; Fully Coated Rear 8K0009860E, 8K0009860F, 8K0061560B, 8K0061560J, 8K0098601E, 8K0098601F, 8K0615601B, 8K0615601J, 8K0615601M, 8KD615601, L8K0615601B, L8KD615601, L8KD615601A

3.2L V6 (3)

A6 (1)

ALLROAD (1)

Q5 (2)

2.0L L4 Turbocharged (7)

3.2L V6 (4)

OE号码

品牌	号码
OE	8K0009860*
OE	8K0009860*
OE	8K0061560*
OE	8K0061560*
OE	8K0098601*

品牌	号码
OE	8K0098601*
OE	8K0615601*
OE	8K0615601*
OE	8K0615601*

品牌	号码
OE	8KD61560*
OE	L8K0615601*
OE	L8KD61560*
OE	L8KD615601*
