GM GENUINE
1771194

第三方数据GM GENUINE : 1771194

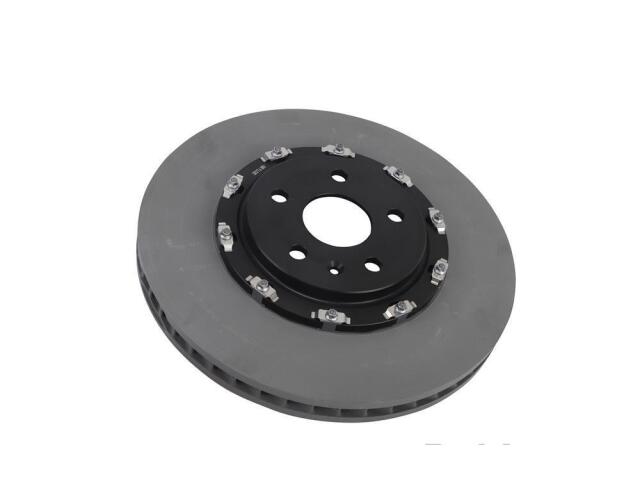

Rotor
GM GENUINE : 1771194

Abs Tone Ring Included: No
Bearings Included: No
Bolt Hole Quantity: 5
Center Hole Diameter (IN): 2.7
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Ground
Inside Diameter (IN): 6.3
Inside Diameter (MM): 160
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 114.68
Mounting Bolt Hole Circle Diameter (MM): 4.51
Nominal Thickness (IN): 1.339
Nominal Thickness (MM): 30
Outside Diameter (IN): 14.56
Outside Diameter (MM): 369.95
Overall Height (IN): 2.35
Overall Height (MM): 59.8
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud Thread Diameter (IN): 0.63
Stud Thread Diameter (MM): 16
Stud/Lug Hole Circle Diameter (in): 4.51
Stud/Lug Hole Circle Diameter (mm): 114.68
Stud/Lug Hole Diameter (IN): 0.65
Stud/Lug Hole Diameter (MM): 16.5
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	177-119*

品牌	号码
OE	2318976*
