GM GENUINE
1771151

第三方数据GM GENUINE : 1771151

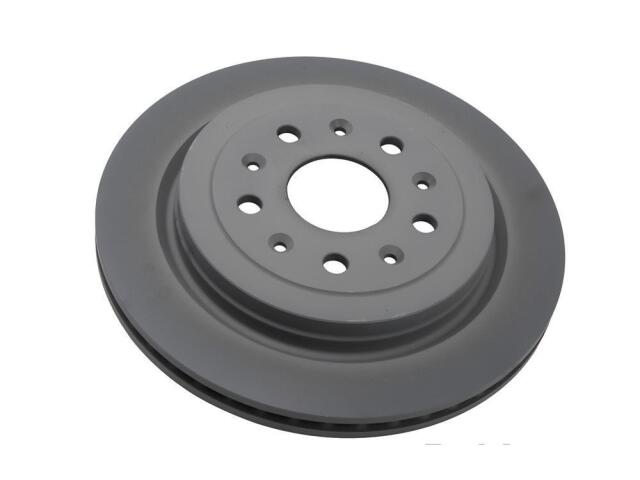

Rotor
GM GENUINE : 1771151

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.72
Bolt Circle Diameter (MM): 120
Bolt Hole Quantity: 5
Center Hole Diameter (IN): 2.6
Center Hole Diameter (MM): 66
Construction: Full Cast
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Ground
Discard Thickness (IN): 0.826
Discard Thickness (MM): 21
Hat Finish: Painted
Inside Diameter (IN): 7.91
Inside Diameter (MM): 201
Lug Quantity: 5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 112.57
Mounting Bolt Hole Circle Diameter (MM): 4.43
Nominal Thickness (IN): 0.91
Nominal Thickness (MM): 23
Outside Diameter (IN): 12.4
Outside Diameter (MM): 315
Overall Height (IN): 1.89
Overall Height (MM): 48
Overall Rotor Diameter (mm): 315mm
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Circle Diameter (in): 4.43
Stud/Lug Hole Circle Diameter (mm): 112.57
Stud/Lug Hole Diameter (IN): 0.55
Stud/Lug Hole Diameter (MM): 14
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	177-115*

品牌	号码
OE	1357819*
