GM GENUINE
1771129

第三方数据GM GENUINE : 1771129

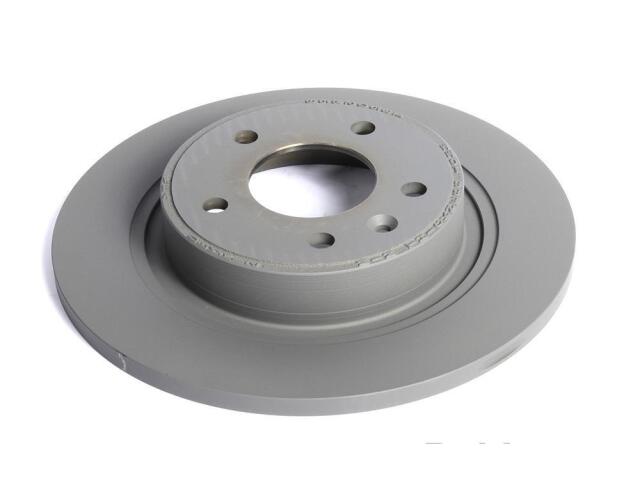

Rotor
GM GENUINE : 1771129

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.528
Bolt Circle Diameter (MM): 115
Bolt Hole Quantity: 5
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Ground
Discard Thickness (IN): 0.39
Discard Thickness (MM): 10
Hat Finish: Coated
Inside Diameter (IN): 6.19
Inside Diameter (MM): 157.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 114.16
Mounting Bolt Hole Circle Diameter (MM): 4.49
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.5
Outside Diameter (MM): 292
Overall Height (IN): 1.77
Overall Height (MM): 45
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Circle Diameter (in): 4.49
Stud/Lug Hole Circle Diameter (mm): 114.16
Stud/Lug Hole Diameter (IN): 0.55
Stud/Lug Hole Diameter (MM): 14
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	177-112*
OE	1350576*

品牌	号码
OE	2311828*

品牌	号码
OE	1358834*
