GM GENUINE
1771123

第三方数据GM GENUINE : 1771123

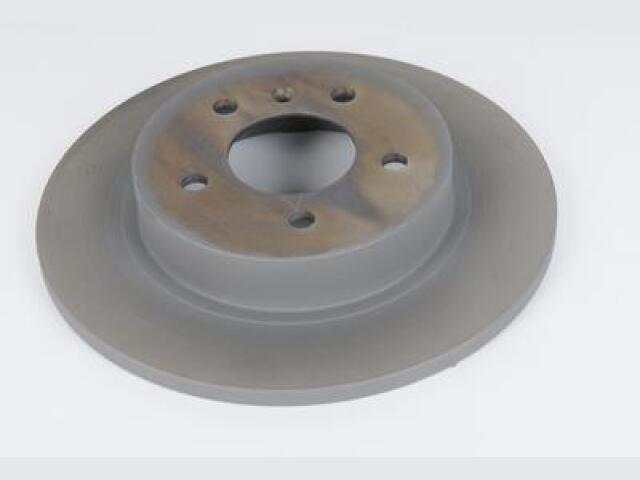

Rotor
GM GENUINE : 1771123

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.528
Bolt Circle Diameter (MM): 115
Bolt Hole Quantity: 5
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Ground
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.5
Hat Finish: Coated
Inside Diameter (IN): 6.38
Inside Diameter (MM): 162
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 115
Mounting Bolt Hole Circle Diameter (MM): 4.53
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.65
Outside Diameter (MM): 296
Overall Height (IN): 2.07
Overall Height (MM): 52.6
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid
Stud Thread Diameter (IN): 0.551
Stud Thread Diameter (MM): 14
Stud/Lug Hole Circle Diameter (in): 4.53
Stud/Lug Hole Circle Diameter (mm): 115
Stud/Lug Hole Diameter (IN): 0.56
Stud/Lug Hole Diameter (MM): 14.25
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CADILLAC (1)

OE号码

品牌	号码
OE	177-112*

品牌	号码
OE	2088009*

品牌	号码
OE	1930380*
