GM GENUINE
1771030

第三方数据GM GENUINE : 1771030

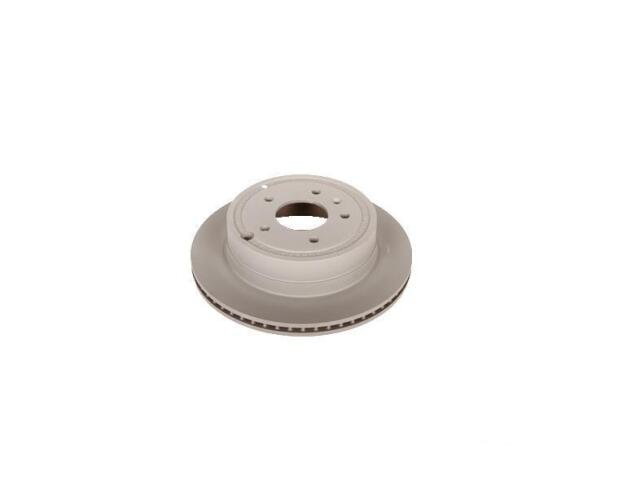

Rotor
GM GENUINE : 1771030

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.5
Bolt Circle Diameter (MM): 115
Bolt Hole Quantity: 5
Center Hole Diameter (IN): 2.7
Center Hole Diameter (MM): 69
Construction: Full Cast
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Ground
Discard Thickness (IN): 0.72
Discard Thickness (MM): 18.39
Inside Diameter (IN): 7.32
Inside Diameter (MM): 186
Lug Quantity: 5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 112.4
Mounting Bolt Hole Circle Diameter (MM): 4.43
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20
Outside Diameter (IN): 11.92
Outside Diameter (MM): 302.89
Overall Height (IN): 2.82
Overall Height (MM): 71.6
Pad Contact Surface Width (IN): 1.6
Pad Contact Surface Width (MM): 43.1
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Circle Diameter (in): 4.43
Stud/Lug Hole Circle Diameter (mm): 112.4
Stud/Lug Hole Diameter (IN): 0.5
Stud/Lug Hole Diameter (MM): 12.7
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

SUZUKI (1)

CHEVROLET (2)

PONTIAC (1)

SATURN (1)

OE号码

品牌	号码
OE	177-103*

品牌	号码
OE	2089295*
