GM GENUINE
1771019

第三方数据GM GENUINE : 1771019

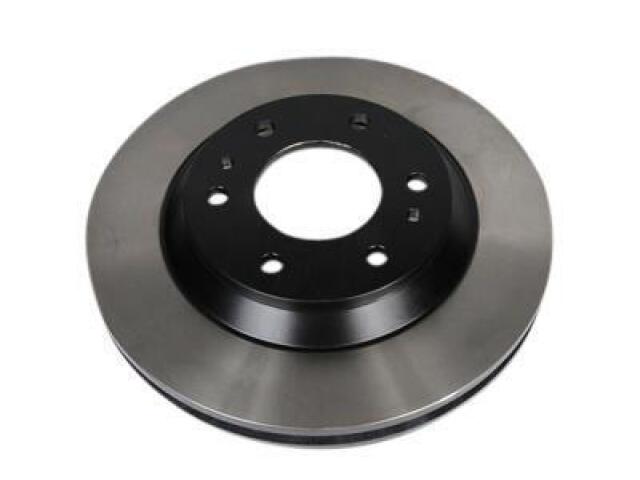

Rotor
GM GENUINE : 1771019

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Bolt Hole Quantity: 6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Disc Finish: Ground
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.5
Lug Quantity: 6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (MM): 5
Nominal Thickness (IN): 1.142
Nominal Thickness (MM): 29
Outside Diameter (IN): 12
Outside Diameter (MM): 304.8
Overall Height (IN): 2.1
Overall Height (MM): 53.34
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

ISUZU (1)

BUICK (1)

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	177-101*

品牌	号码
OE	1918100*
