GM GENUINE
1771008

第三方数据GM GENUINE : 1771008

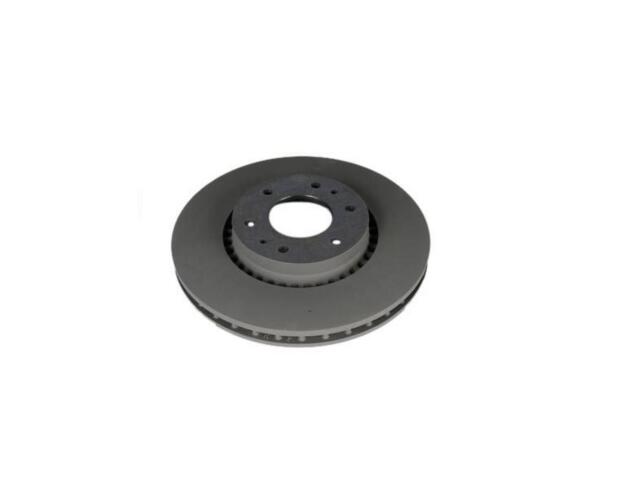

Rotor
GM GENUINE : 1771008

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 5
Bolt Circle Diameter (MM): 127
Bolt Hole Quantity: 6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Ground
Discard Thickness (IN): 1.08
Discard Thickness (MM): 27.5
Inside Diameter (IN): 5.79
Inside Diameter (MM): 147.06
Lug Quantity: 6
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 127
Mounting Bolt Hole Circle Diameter (MM): 5
Nominal Thickness (IN): 1.14
Nominal Thickness (MM): 29.006
Outside Diameter (IN): 12.99
Outside Diameter (MM): 329.94
Overall Height (IN): 2.3
Overall Height (MM): 58.5
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Circle Diameter (in): 5
Stud/Lug Hole Circle Diameter (mm): 127
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

ISUZU (1)

SAAB (1)

BUICK (1)

CHEVROLET (2)

GMC (1)

OE号码

品牌	号码
OE	177-100*

品牌	号码
OE	2582610*
