GM GENUINE
1770911

第三方数据GM GENUINE : 1770911

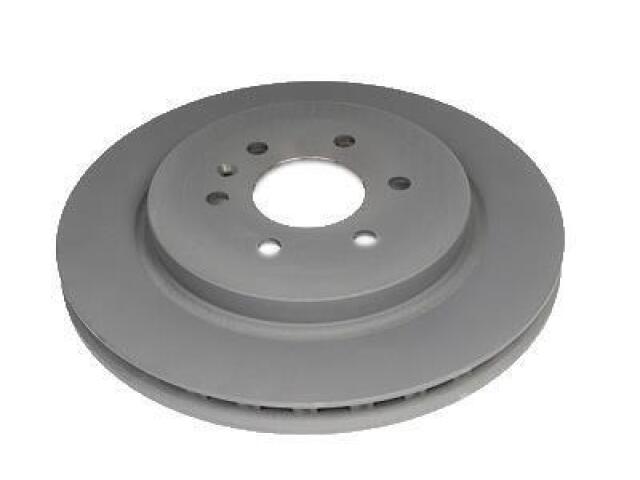

Rotor
GM GENUINE : 1770911

Abs Tone Ring Included: No
Bearings Included: No
Bolt Circle Diameter (IN): 4.528
Bolt Circle Diameter (MM): 115
Bolt Hole Quantity: 6
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Ground
Discard Thickness (IN): 0.94
Discard Thickness (MM): 24
Hat Finish: Bare
Inside Diameter (IN): 7.49
Inside Diameter (MM): 190.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 115
Mounting Bolt Hole Circle Diameter (MM): 4.53
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Height (IN): 1.89
Overall Height (MM): 47.9
Pad Contact Surface Width (IN): 1.4
Pad Contact Surface Width (MM): 36.6
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Circle Diameter (in): 4.53
Stud/Lug Hole Circle Diameter (mm): 115
Stud/Lug Hole Diameter (IN): 0.51
Stud/Lug Hole Diameter (MM): 13
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	177-091*

品牌	号码
OE	1523514*

品牌	号码
OE	1930381*
