GM GENUINE
13549949

第三方数据GM GENUINE : 13549949

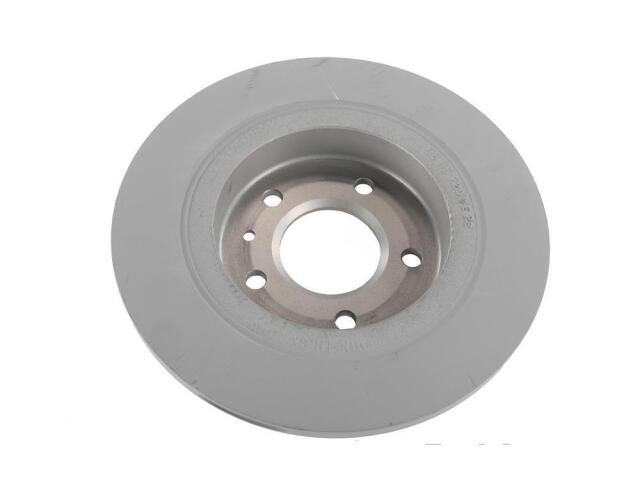

Rotor
GM GENUINE : 13549949

Abs Tone Ring Included: No
Bearings Included: No
Construction: Full Cast
Directional or Non-Directional Brake Surface: Non-Directional
Disc Finish: Ground
Inside Diameter (IN): 6.15
Inside Diameter (MM): 156.2
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 112.32
Mounting Bolt Hole Circle Diameter (MM): 4.42
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 11.34
Outside Diameter (MM): 288
Overall Height (IN): 1.77
Overall Height (MM): 45
Rust Resistant Coating: Yes
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Circle Diameter (in): 4.42
Stud/Lug Hole Circle Diameter (mm): 112.32
Stud/Lug Hole Diameter (IN): 0.55
Stud/Lug Hole Diameter (MM): 14
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

BUICK (1)

CHEVROLET (1)
