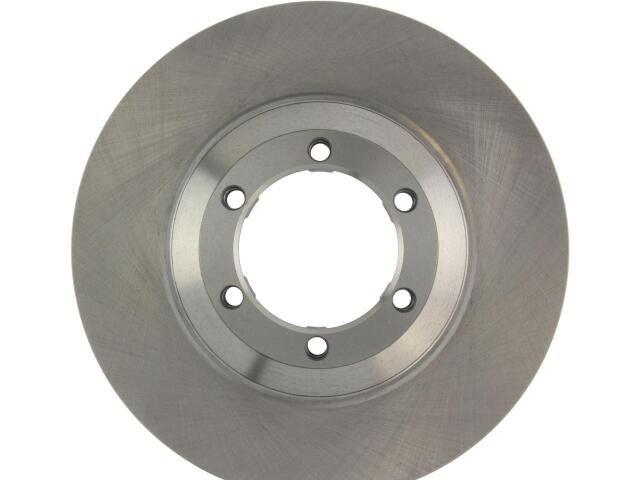

Rotor
FVP : 12199090

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.465
Center Hole Diameter (MM): 88.000
Disc Mounting: Behind the Hub
Discard Thickness (IN): 1.008
Discard Thickness (MM): 25.600
Mounting Bolt Hole Circle Diameter (IN): 4.291
Mounting Bolt Hole Circle Diameter (MM): 109.000
Nominal Thickness (IN): 1.063
Nominal Thickness (MM): 27.000
Outside Diameter (IN): 11.024
Outside Diameter (MM): 280.000
Overall Height (IN): 1.575
Overall Height (MM): 40.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (MM): 12.000
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

CHEVROLET (1)

OE号码

品牌	号码
OE	121-9909*
