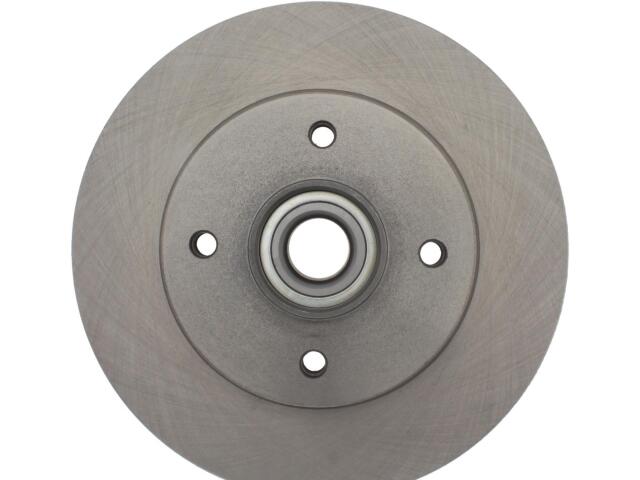

Rotor
FVP : 12199086

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.071
Center Hole Diameter (MM): 78.000
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.354
Nominal Thickness (MM): 9.000
Outside Diameter (IN): 9.795
Outside Diameter (MM): 248.800
Overall Height (IN): 2.646
Overall Height (MM): 67.200
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (MM): 12.000
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

PEUGEOT (1)
