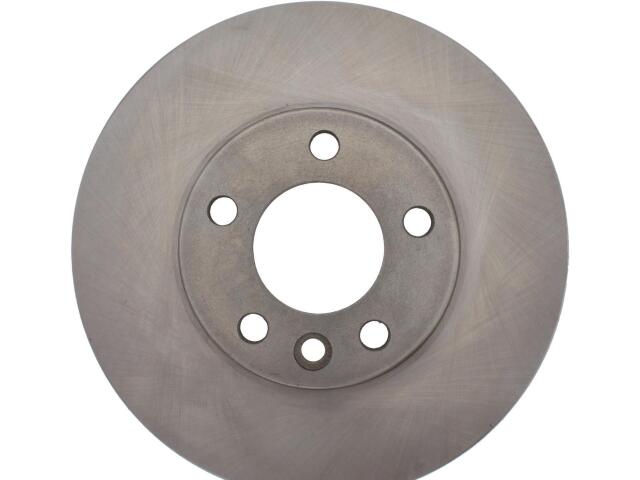

Rotor
FVP : 12199083

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.992
Center Hole Diameter (MM): 76.000
Disc Mounting: Floating
Discard Thickness (IN): 1.004
Discard Thickness (MM): 25.500
Hat ID in: 5.961
Hat ID mm: 151.400
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Thickness (IN): 1.161
Nominal Thickness (MM): 29.500
Outside Diameter (IN): 12.126
Outside Diameter (MM): 308.000
Overall Height (IN): 2.165
Overall Height (MM): 55.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.657
Stud/Lug Hole Diameter (MM): 16.700
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

VOLKSWAGEN (1)
