FVP
12199075

第三方数据FVP : 12199075

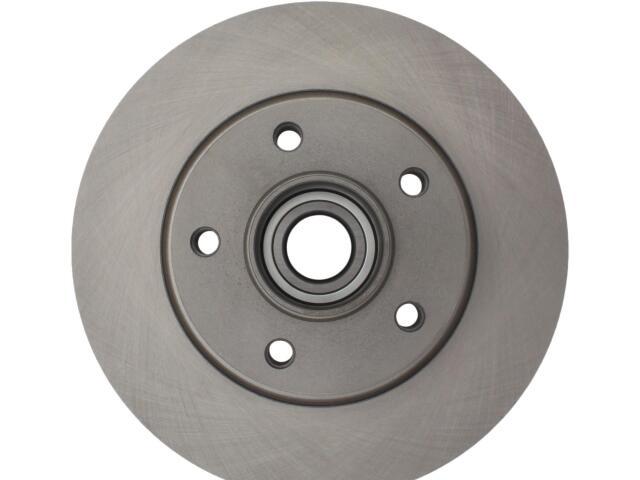

Rotor
FVP : 12199075

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.787
Center Hole Diameter (MM): 70.800
Disc Mounting: Hub & Rotor
Discard Thickness (IN): 0.394
Discard Thickness (MM): 10.000
Mounting Bolt Hole Circle Diameter (IN): 4.646
Mounting Bolt Hole Circle Diameter (MM): 118.000
Nominal Thickness (IN): 0.472
Nominal Thickness (MM): 12.000
Outside Diameter (IN): 11.020
Outside Diameter (MM): 279.900
Overall Height (IN): 4.028
Overall Height (MM): 102.300
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (MM): 14.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

RENAULT (1)
