FVP
12199070

第三方数据FVP : 12199070

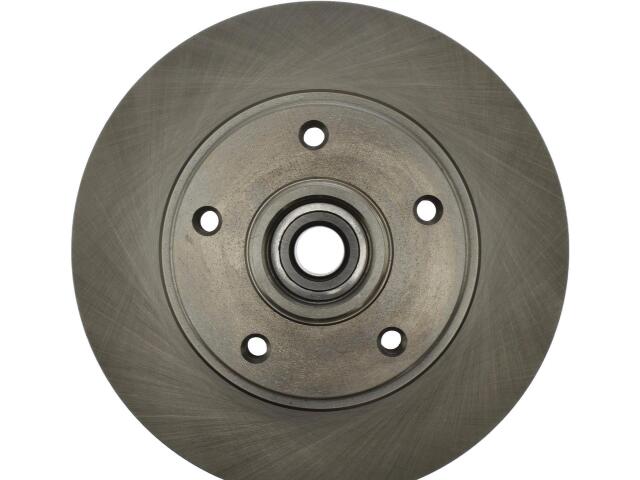

Rotor
FVP : 12199070

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.587
Center Hole Diameter (MM): 65.700
Disc Mounting: Hub & Rotor
Discard Thickness (IN): 0.276
Discard Thickness (MM): 7.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Thickness (IN): 0.319
Nominal Thickness (MM): 8.090
Outside Diameter (IN): 10.236
Outside Diameter (MM): 260.000
Overall Height (IN): 3.453
Overall Height (MM): 87.700
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (MM): 12.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

RENAULT (1)
