FVP
12199066

第三方数据FVP : 12199066

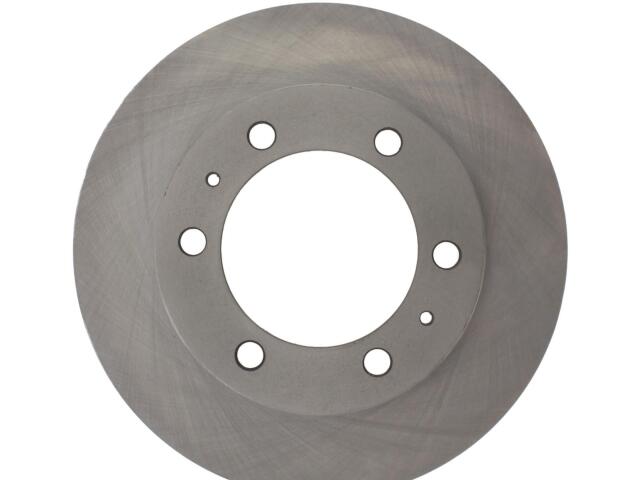

Rotor
FVP : 12199066

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 4.252
Center Hole Diameter (MM): 108.000
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Hat ID in: 6.654
Hat ID mm: 169.000
Mounting Bolt Hole Circle Diameter (IN): 5.496
Mounting Bolt Hole Circle Diameter (MM): 139.600
Nominal Thickness (IN): 0.984
Nominal Thickness (MM): 25.000
Outside Diameter (IN): 11.693
Outside Diameter (MM): 297.000
Overall Height (IN): 2.657
Overall Height (MM): 67.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.563
Stud/Lug Hole Diameter (MM): 14.300
Stud/Lug Hole Quantity: 6
Surface Type: Smooth

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	121-9906*
