FVP
12199065

第三方数据FVP : 12199065

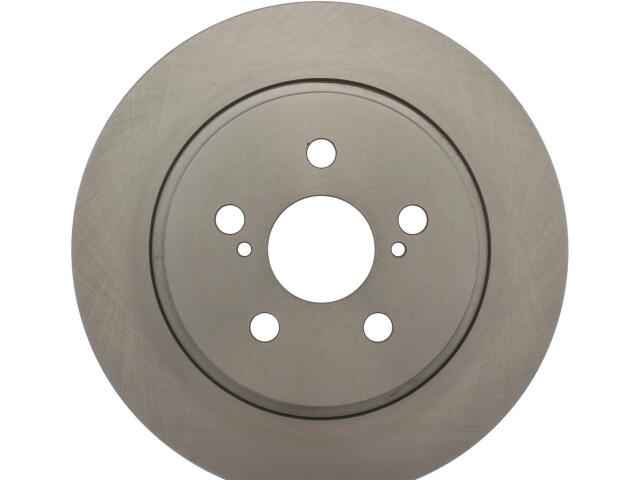

Rotor
FVP : 12199065

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.165
Center Hole Diameter (MM): 55.000
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 10.630
Outside Diameter (MM): 270.000
Overall Height (IN): 1.437
Overall Height (MM): 36.500
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.571
Stud/Lug Hole Diameter (MM): 14.500
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	121-9906*
