FVP
12199059

第三方数据FVP : 12199059

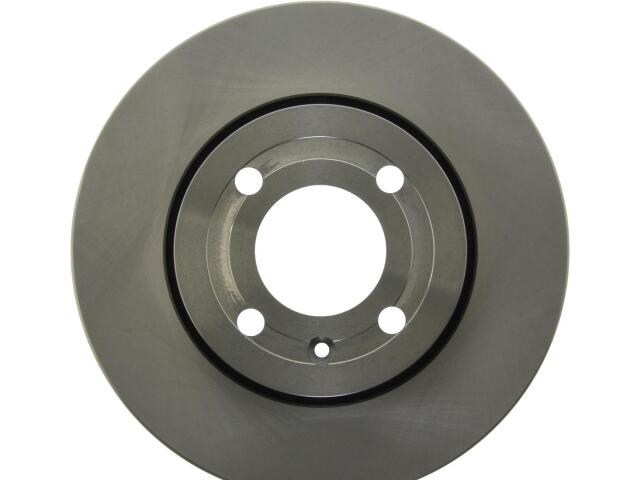

Rotor
FVP : 12199059

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.559
Center Hole Diameter (MM): 65.000
Disc Mounting: Floating
Discard Thickness (IN): 0.630
Discard Thickness (MM): 16.000
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.705
Nominal Thickness (MM): 17.900
Outside Diameter (IN): 10.067
Outside Diameter (MM): 255.700
Overall Height (IN): 1.327
Overall Height (MM): 33.700
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.543
Stud/Lug Hole Diameter (MM): 13.800
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

VOLKSWAGEN (2)
