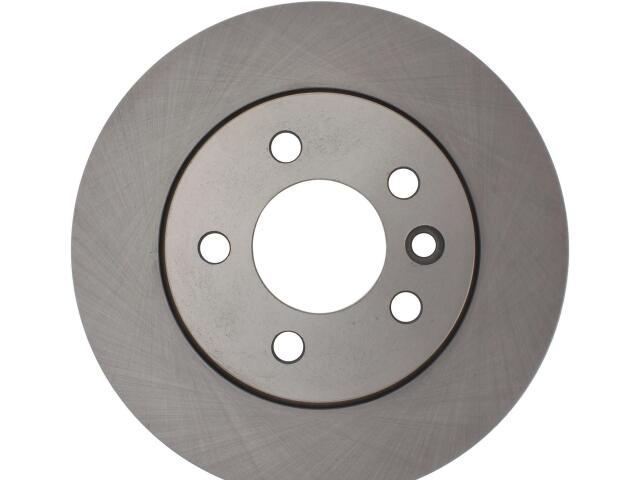

Rotor
FVP : 12199058

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.992
Center Hole Diameter (MM): 76.000
Disc Mounting: Floating
Discard Thickness (IN): 1.024
Discard Thickness (MM): 26.000
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Thickness (IN): 1.098
Nominal Thickness (MM): 27.900
Outside Diameter (IN): 11.925
Outside Diameter (MM): 302.900
Overall Height (IN): 2.240
Overall Height (MM): 56.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.657
Stud/Lug Hole Diameter (MM): 16.700
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

VOLKSWAGEN (1)
