FVP
12199047

第三方数据FVP : 12199047

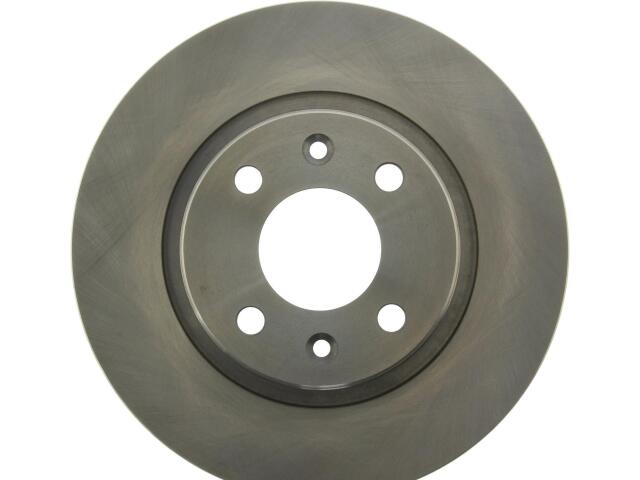

Rotor
FVP : 12199047

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.402
Center Hole Diameter (MM): 61.000
Disc Mounting: Floating
Discard Thickness (IN): 0.697
Discard Thickness (MM): 17.700
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.815
Nominal Thickness (MM): 20.700
Outside Diameter (IN): 10.197
Outside Diameter (MM): 259.000
Overall Height (IN): 1.575
Overall Height (MM): 40.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.531
Stud/Lug Hole Diameter (MM): 13.500
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

RENAULT (2)
