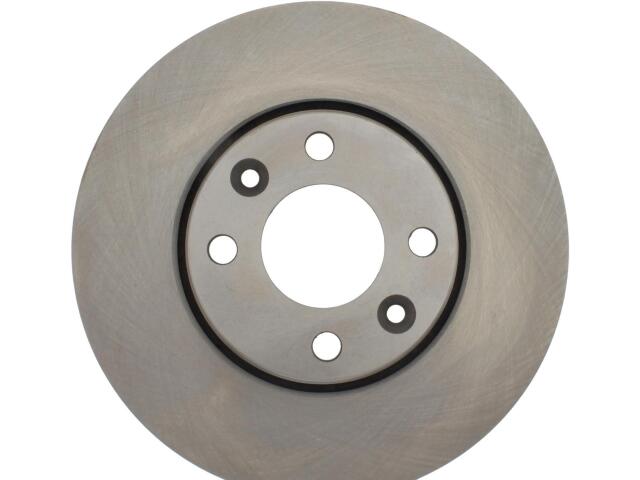

Rotor
FVP : 12199039

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.402
Center Hole Diameter (MM): 61.000
Disc Mounting: Floating
Discard Thickness (IN): 0.780
Discard Thickness (MM): 19.800
Mounting Bolt Hole Circle Diameter (IN): 3.937
Mounting Bolt Hole Circle Diameter (MM): 100.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 10.228
Outside Diameter (MM): 259.800
Overall Height (IN): 1.728
Overall Height (MM): 43.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.531
Stud/Lug Hole Diameter (MM): 13.500
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

NISSAN (1)
