FVP
12199023

第三方数据FVP : 12199023

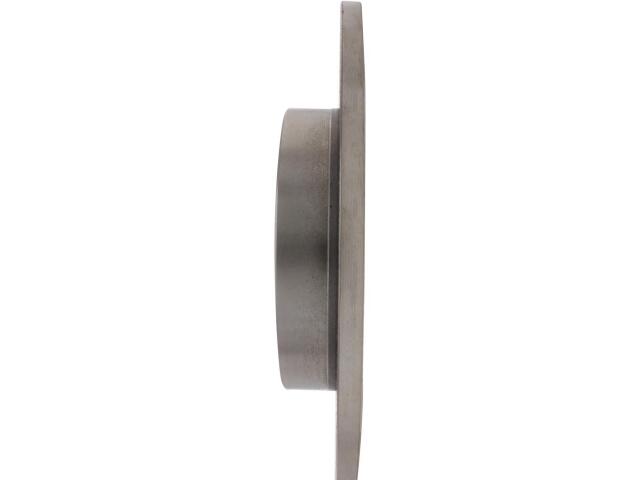

Rotor
FVP : 12199023

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.799
Center Hole Diameter (MM): 71.100
Disc Mounting: Floating
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.354
Nominal Thickness (MM): 9.000
Outside Diameter (IN): 9.713
Outside Diameter (MM): 246.700
Overall Height (IN): 1.382
Overall Height (MM): 35.100
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

PEUGEOT (1)
