FVP
12199016

第三方数据FVP : 12199016

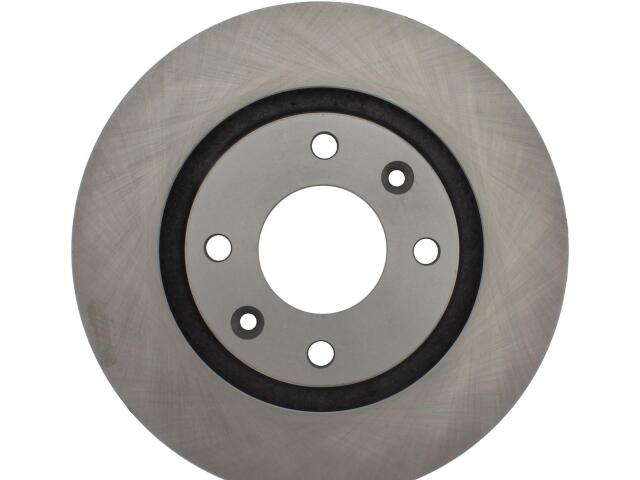

Rotor
FVP : 12199016

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.598
Center Hole Diameter (MM): 66.000
Disc Mounting: Floating
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 10.453
Outside Diameter (MM): 265.500
Overall Height (IN): 1.339
Overall Height (MM): 34.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 4
Surface Type: Smooth

适用车型

PEUGEOT (2)
