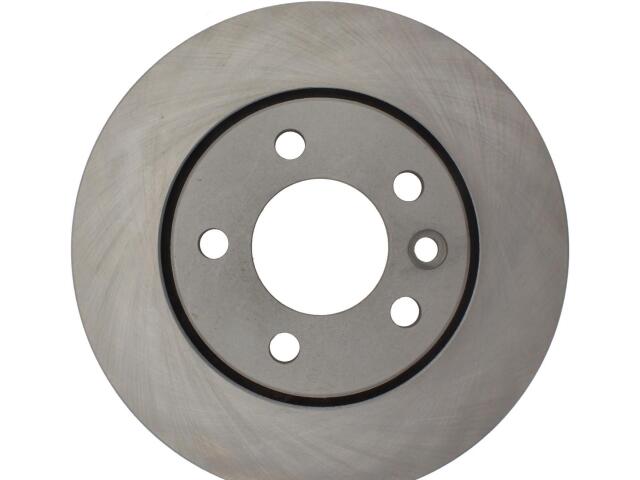

Rotor
FVP : 12199015

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.992
Center Hole Diameter (MM): 76.000
Disc Mounting: Floating
Discard Thickness (IN): 0.768
Discard Thickness (MM): 19.500
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
Outside Diameter (IN): 11.563
Outside Diameter (MM): 293.700
Overall Height (IN): 1.740
Overall Height (MM): 44.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.654
Stud/Lug Hole Diameter (MM): 16.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

VOLKSWAGEN (1)
