FVP
12199010

第三方数据FVP : 12199010

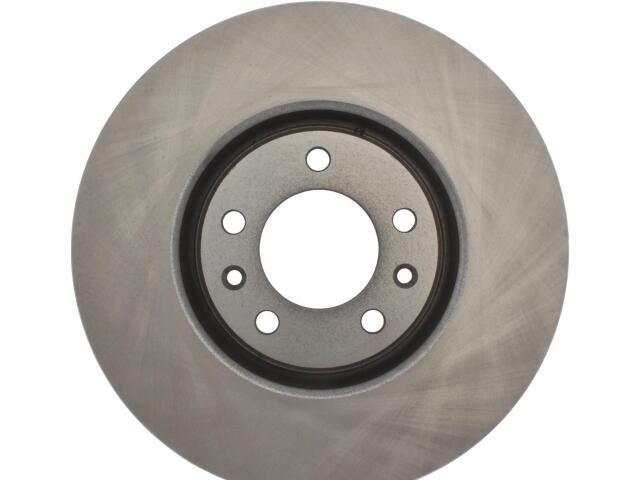

Rotor
FVP : 12199010

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.795
Center Hole Diameter (MM): 71.000
Disc Mounting: Floating
Discard Thickness (IN): 1.181
Discard Thickness (MM): 30.000
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 1.260
Nominal Thickness (MM): 32.000
Outside Diameter (IN): 12.169
Outside Diameter (MM): 309.100
Overall Height (IN): 1.717
Overall Height (MM): 43.600
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.520
Stud/Lug Hole Diameter (MM): 13.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

PEUGEOT (1)
