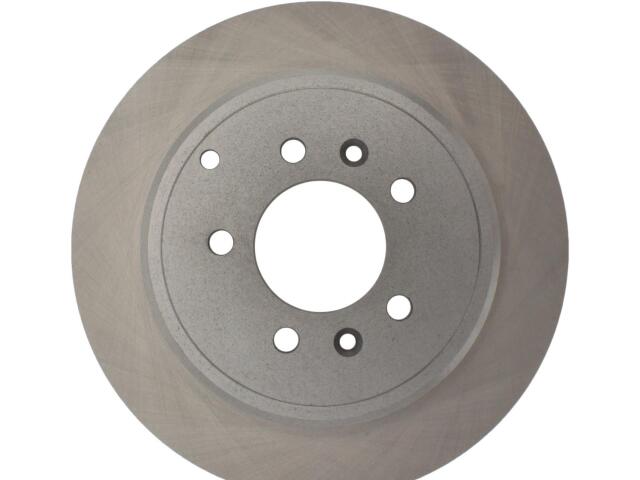

Rotor
FVP : 12199007

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.795
Center Hole Diameter (MM): 71.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.315
Discard Thickness (MM): 8.000
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.394
Nominal Thickness (MM): 10.000
Outside Diameter (IN): 11.409
Outside Diameter (MM): 289.800
Overall Height (IN): 2.008
Overall Height (MM): 51.000
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.512
Stud/Lug Hole Diameter (MM): 13.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

PEUGEOT (1)
