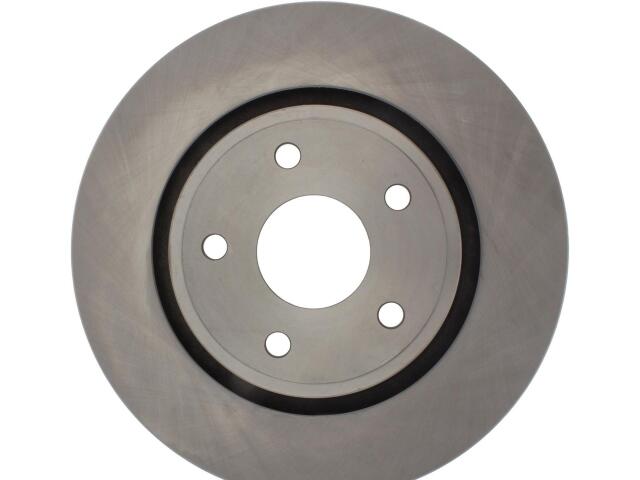

Rotor
FVP : 12167064

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.083
Center Hole Diameter (MM): 78.300
Disc Mounting: Floating
Discard Thickness (IN): 1.335
Discard Thickness (MM): 33.900
Mounting Bolt Hole Circle Diameter (IN): 5.500
Mounting Bolt Hole Circle Diameter (MM): 139.700
Nominal Thickness (IN): 1.402
Nominal Thickness (MM): 35.600
Outside Diameter (IN): 14.961
Outside Diameter (MM): 380.000
Overall Height (IN): 3.016
Overall Height (MM): 76.600
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.669
Stud/Lug Hole Diameter (MM): 17.000
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

DODGE (1)

OE号码

品牌	号码
OE	121-6706*
