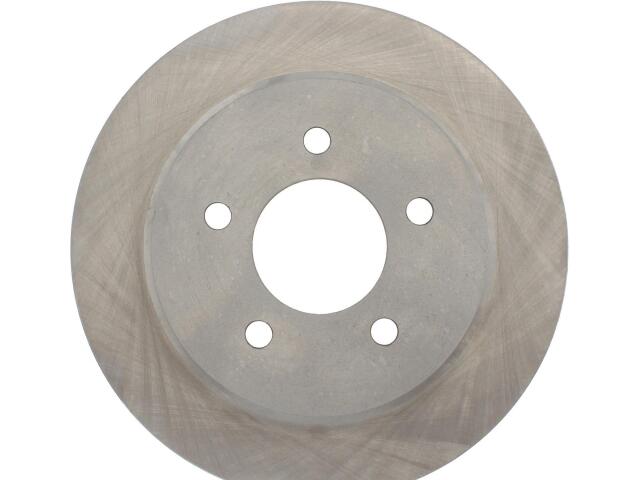

Rotor
FVP : 12167037

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.835
Center Hole Diameter (MM): 72.000
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.443
Discard Thickness (MM): 11.250
Max PB Drum Dia in: 7.126
Max PB Drum Dia mm: 181.000
Mounting Bolt Hole Circle Diameter (IN): 4.500
Mounting Bolt Hole Circle Diameter (MM): 114.300
Nominal Drum Diameter (IN): 7.087
Nominal Drum Diameter (MM): 180.000
Nominal Thickness (IN): 0.492
Nominal Thickness (MM): 12.500
Outside Diameter (IN): 11.409
Outside Diameter (MM): 289.800
Overall Height (IN): 2.205
Overall Height (MM): 56.000
Solid Or Vented Type Rotor: Solid
Stud/Lug Hole Diameter (IN): 0.563
Stud/Lug Hole Diameter (MM): 14.300
Stud/Lug Hole Quantity: 5
Surface Type: Smooth

适用车型

CHRYSLER (1)

DODGE (2)

OE号码

品牌	号码
OE	121-6703*
