FVP
12166073

第三方数据FVP : 12166073

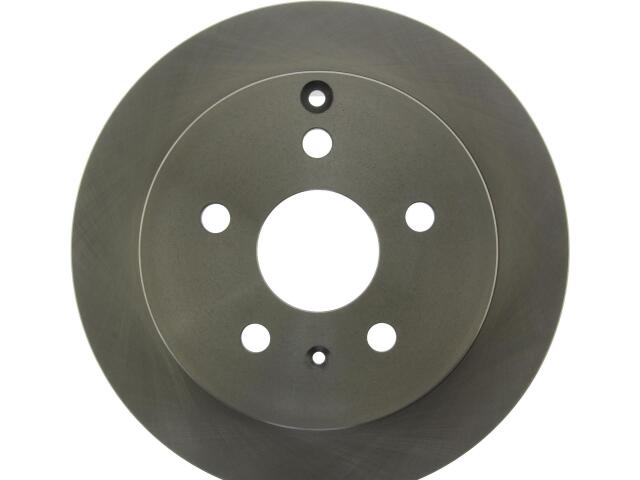

Rotor
FVP : 12166073

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.654
Center Hole Diameter (MM): 67.400
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.724
Discard Thickness (MM): 18.400
Max PB Drum Dia in: 7.520
Max PB Drum Dia mm: 191.000
Mounting Bolt Hole Circle Diameter (IN): 4.724
Mounting Bolt Hole Circle Diameter (MM): 120.000
Nominal Drum Diameter (IN): 7.476
Nominal Drum Diameter (MM): 189.900
Nominal Thickness (IN): 0.787
Nominal Thickness (MM): 20.000
Outside Diameter (IN): 11.929
Outside Diameter (MM): 303.000
Overall Height (IN): 2.823
Overall Height (MM): 71.700
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.638
Stud/Lug Hole Diameter (MM): 16.200
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	121-6607*
