FVP
12166072

第三方数据FVP : 12166072

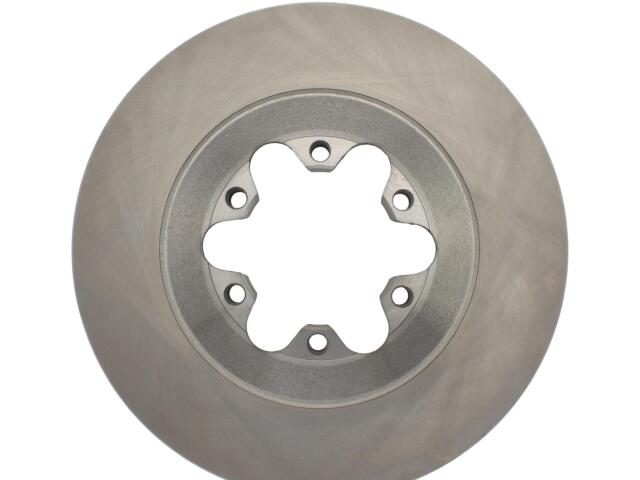

Rotor
FVP : 12166072

ABS Sensor Ring Included: No
Bearings Included: No
Bolt Thread Pitch (MM): 1.250
Center Hole Diameter (IN): 3.626
Center Hole Diameter (MM): 92.100
Disc Mounting: Behind the Hub
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.500
Mounting Bolt Hole Circle Diameter (IN): 4.409
Mounting Bolt Hole Circle Diameter (MM): 112.000
Mounting Bolt Hole Diameter (MM): 10.000
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.142
Nominal Thickness (MM): 29.000
Outside Diameter (IN): 11.732
Outside Diameter (MM): 298.000
Overall Height (IN): 1.583
Overall Height (MM): 40.200
Solid Or Vented Type Rotor: Vented
Surface Type: Smooth
Vane Style: Straight

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	121-6607*
