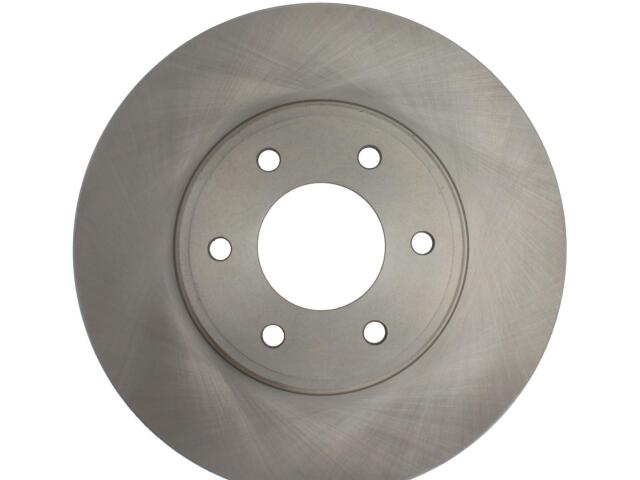

Rotor
FVP : 12166064

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.114
Center Hole Diameter (MM): 79.100
Disc Mounting: Floating
Discard Thickness (IN): 1.083
Discard Thickness (MM): 27.500
Mounting Bolt Hole Circle Diameter (IN): 5.000
Mounting Bolt Hole Circle Diameter (MM): 127.000
Nominal Thickness (IN): 1.142
Nominal Thickness (MM): 29.000
Outside Diameter (IN): 12.803
Outside Diameter (MM): 325.200
Overall Height (IN): 2.154
Overall Height (MM): 54.700
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.524
Stud/Lug Hole Diameter (MM): 13.300
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Straight

适用车型

SAAB (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	121-6606*
