FVP
12166054

第三方数据FVP : 12166054

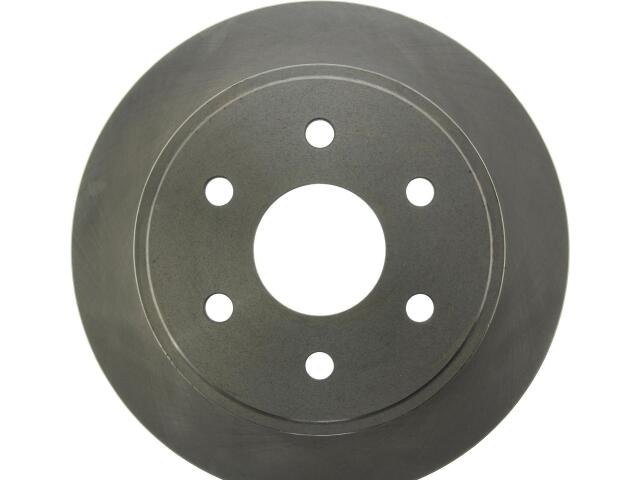

Rotor
FVP : 12166054

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.091
Center Hole Diameter (MM): 78.500
Disc Mounting: Floating / DIH
Discard Thickness (IN): 1.043
Discard Thickness (MM): 26.500
Mounting Bolt Hole Circle Diameter (IN): 5.512
Mounting Bolt Hole Circle Diameter (MM): 140.000
Nominal Drum Diameter (IN): 8.071
Nominal Drum Diameter (MM): 205.000
Nominal Thickness (IN): 1.142
Nominal Thickness (MM): 29.000
Outside Diameter (IN): 12.992
Outside Diameter (MM): 330.000
Overall Height (IN): 3.425
Overall Height (MM): 87.000
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.642
Stud/Lug Hole Diameter (MM): 16.300
Stud/Lug Hole Quantity: 6
Surface Type: Smooth
Vane Style: Straight

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	121-6605*
