FVP
12166050

第三方数据FVP : 12166050

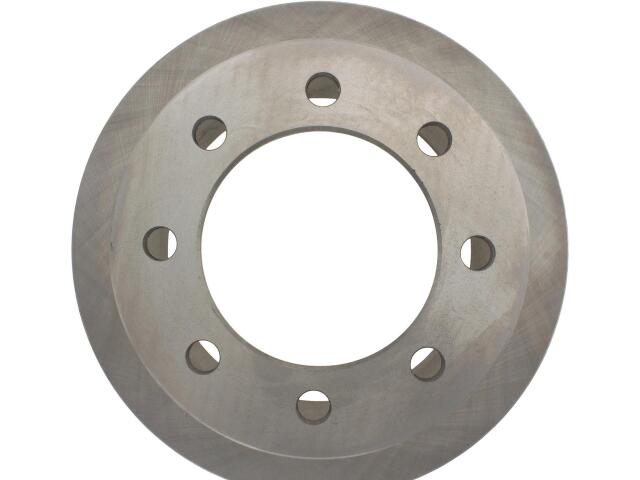

Rotor
FVP : 12166050

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 4.835
Center Hole Diameter (MM): 122.800
Disc Mounting: Floating / DIH
Discard Thickness (IN): 1.122
Discard Thickness (MM): 28.500
Max PB Drum Dia in: 8.177
Max PB Drum Dia mm: 207.700
Mounting Bolt Hole Circle Diameter (IN): 6.500
Mounting Bolt Hole Circle Diameter (MM): 165.100
Nominal Drum Diameter (IN): 8.118
Nominal Drum Diameter (MM): 206.200
Nominal Thickness (IN): 1.181
Nominal Thickness (MM): 30.000
Outside Diameter (IN): 12.795
Outside Diameter (MM): 325.000
Overall Height (IN): 5.177
Overall Height (MM): 131.500
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.646
Stud/Lug Hole Diameter (MM): 16.400
Stud/Lug Hole Quantity: 8
Surface Type: Smooth
Vane Style: Straight

适用车型

CHEVROLET (3)

EXPRESS 3500 (4)

SILVERADO 3500 (3)

SILVERADO 3500 CLASSIC (3)

GMC (3)

SAVANA 3500 (3)

SIERRA 3500 (3)

SIERRA 3500 CLASSIC (3)

OE号码

品牌	号码
OE	121-6605*
