FVP
12165149

第三方数据FVP : 12165149

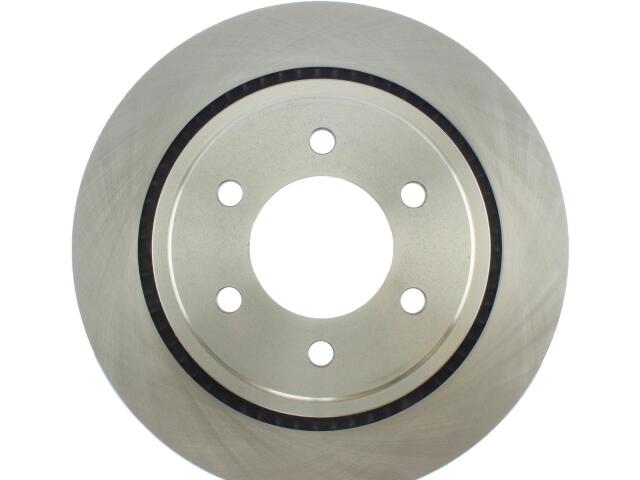

Rotor
FVP : 12165149

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.543
Center Hole Diameter (MM): 90.000
Disc Mounting: Floating
Discard Thickness (IN): 0.787
Discard Thickness (MM): 20.000
Hat ID in: 8.094
Hat ID mm: 205.600
Mounting Bolt Hole Circle Diameter (IN): 5.315
Mounting Bolt Hole Circle Diameter (MM): 135.000
Nominal Thickness (IN): 0.866
Nominal Thickness (MM): 22.000
OEM Vane Count: 50
Outside Diameter (IN): 13.228
Outside Diameter (MM): 336.000
Overall Height (IN): 1.768
Overall Height (MM): 44.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.614
Stud/Lug Hole Diameter (MM): 15.600
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

OE号码

品牌	号码
OE	121-6514*
