FVP
12165146

第三方数据FVP : 12165146

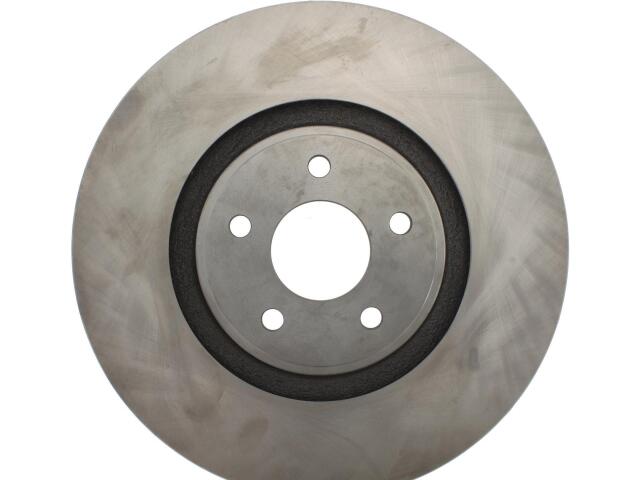

Rotor
FVP : 12165146

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 2.504
Center Hole Diameter (MM): 63.600
Disc Mounting: Floating
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Hat ID in: 5.799
Hat ID mm: 147.300
Mounting Bolt Hole Circle Diameter (IN): 4.252
Mounting Bolt Hole Circle Diameter (MM): 108.000
Nominal Thickness (IN): 0.984
Nominal Thickness (MM): 25.000
OEM Vane Count: 47
Outside Diameter (IN): 13.189
Outside Diameter (MM): 335.000
Overall Height (IN): 1.925
Overall Height (MM): 48.900
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.543
Stud/Lug Hole Diameter (MM): 13.800
Stud/Lug Hole Quantity: 5
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	121-6514*
