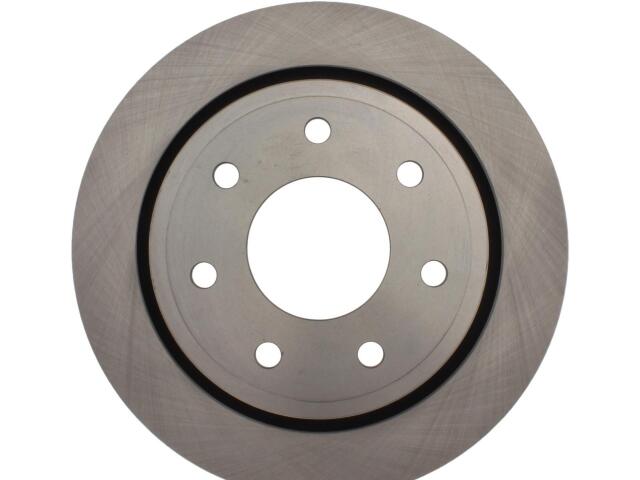

Rotor
FVP : 12165133

ABS Sensor Ring Included: No
Bearings Included: No
Center Hole Diameter (IN): 3.547
Center Hole Diameter (MM): 90.100
Disc Mounting: Floating / DIH
Discard Thickness (IN): 0.906
Discard Thickness (MM): 23.000
Max PB Drum Dia in: 8.157
Max PB Drum Dia mm: 207.200
Mounting Bolt Hole Circle Diameter (IN): 5.906
Mounting Bolt Hole Circle Diameter (MM): 150.000
Nominal Drum Diameter (IN): 8.110
Nominal Drum Diameter (MM): 206.000
Nominal Thickness (IN): 0.984
Nominal Thickness (MM): 25.000
Outside Diameter (IN): 13.709
Outside Diameter (MM): 348.200
Overall Height (IN): 3.157
Overall Height (MM): 80.200
Solid Or Vented Type Rotor: Vented
Stud/Lug Hole Diameter (IN): 0.618
Stud/Lug Hole Diameter (MM): 15.700
Stud/Lug Hole Quantity: 7
Surface Type: Smooth
Vane Style: Straight

适用车型

FORD (1)

OE号码

品牌	号码
OE	121-6513*
